42CBL -IE

Home   Products   >   Motors with integrated Controller   >   Brushless DC motors with Speed controller   >   42CBL -IE

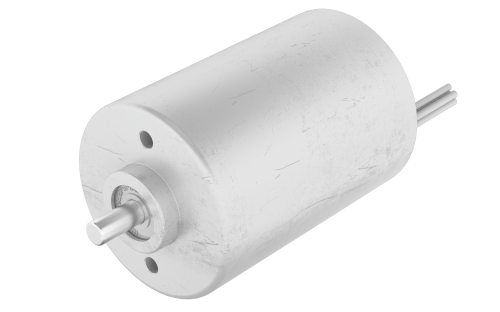

42CBL60-IE

42CBL60-IE

Product Code: 42CBL60-IE.000
Technical Data Download Combinations
Size42 mmLength (L)60 mm
Rated Torque0.068 NmRated Current2.13 A
Rated Voltage24 VdcRated Speed5900 rpm
n° of Pole4 n° of Phase3
Max. Peak Torque0.2 NmTorque Constant0.032 Nm/A
Max. Peak Current6.6 ANo-Load Current250 mA
Line to Line Resistance0.82 OhmLine to Line Inductance0.75 mH
Rotor Inertia44 gcm2Weight0.35 Kg
Hall Effect Angle120 °Shaft run out0.025 mm
Insulation ClassB Protection ClassIP40
Radial Play (450g load)0.02 mmAxial Play (450g load)0.08 mm
Max. Radial Force (10mm from flange)15 NMax. Axial Force10 N
Dielectric Strength (for 1min.)500 VACInsulation Resistance (min.500 VDC)100 Mohm
