39SH

Home   Products   >   Stepper motors   >   Hybrid Stepper motors   >   39SH

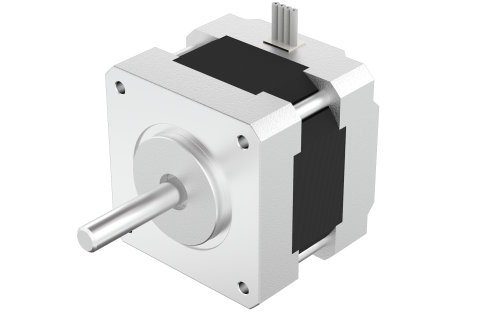

39SH20-0506A

39SH20-0506A

Product Code: 39SH20-0506A.000
Buy online:
RS logo

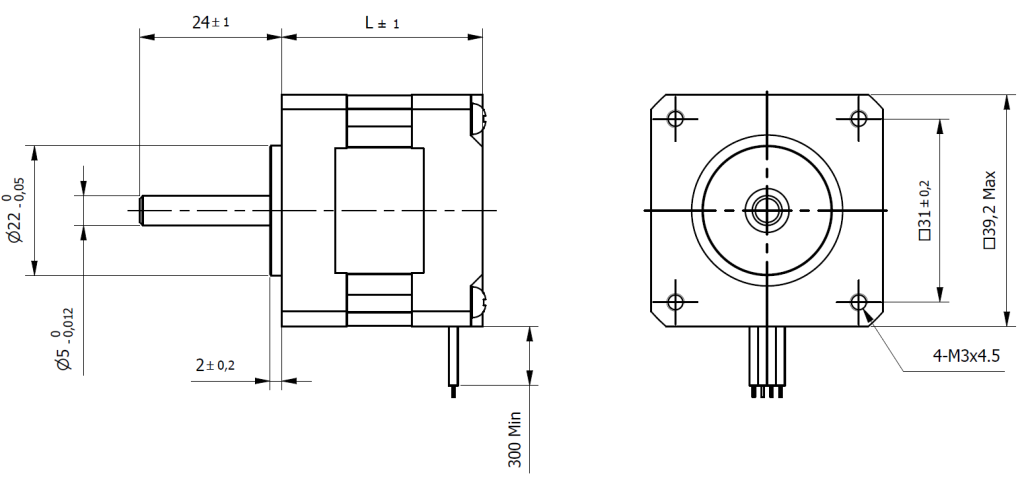

Technical Data Download Dimensions Combinations
SeriesSH Size39 mm
Nema16 Length (L)20 mm
Current/Phase0.5 AHolding Torque0.08 Nm
Step Angle1.8 °Rated Voltage6.5 Vdc
Resistance/Phase13 OhmInductance/Phase6 mH
Rotor Inertia11 gcm2Detent Torque0.005 Nm
N° of Leads6 Weight0.12 Kg
Step Angle accuracy±5 %Insulation ClassB
Protection ClassIP30 Operating Temperature-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CRadial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (20mm from flange)28 N
Max. Axial Force10 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
