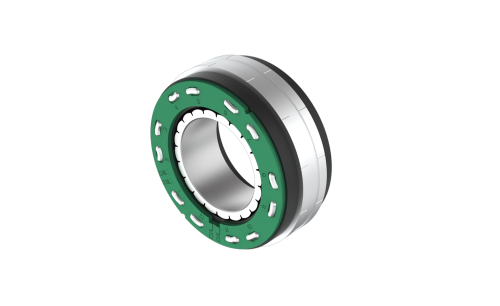

38BLF07-24V

38BLF07-24V

Stator OD 38 mm  |  Rotor ID 18 mm  |  Rated Voltage 24 Vdc  |  Rated Torque 0.1 Nm  |  Rated Speed 8000 rpm

Product Code: 38BLF07-24V

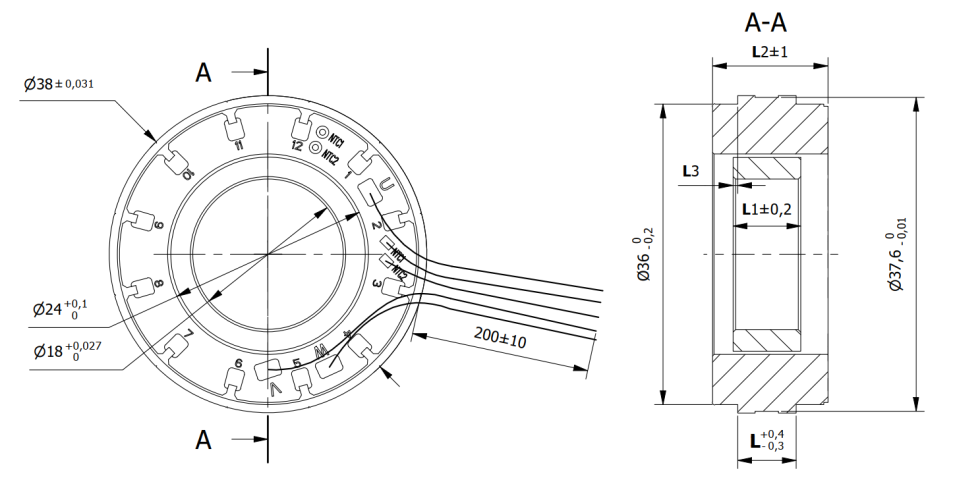

Technical Data Download Dimensions Combinations
Stator OD38 mmRotor ID18 mm
Rated Voltage24 VdcRated Torque0.1 Nm
Max. Peak Torque0.3 NmRated Speed8000 rpm
Max. Speed11000 rpmn° of Pole14
n° of Phase3 Torque Constant0.025 Nm/A
Rated Current4.5 AMax. Peak Current13.5 A
No-Load Current500 mALine to Line Resistance0.37 Ohm
Line to Line Inductance0.32 mHRotor Inertia9.68 gcm2
Back EMF1.54 Vrms/KrpmStator height (L)7 mm
Rotor height (L1)8.1 mmLength (L2)13.8 mm
Measure (L3)0.55 mmWeight0.057 Kg
Hall Effect Angle120 °Insulation ClassB
Dielectric strength (for 1 sec.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
Operating Temperature-20°C +50°C Humiditymax. 85% not condensing
