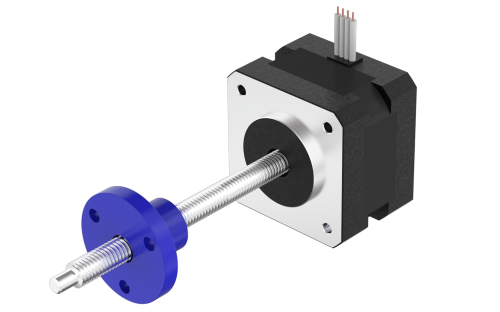

35E47-15-CE100

35E47-15-CE100

Size 35 mm  |  Nema 14   |  Length (L) 47 mm  |  Current/Phase 1.5 A  |  Thrust ref 25 N  |  Travel per Step 0.127 mm

Product Code: 35E47-15-CE100

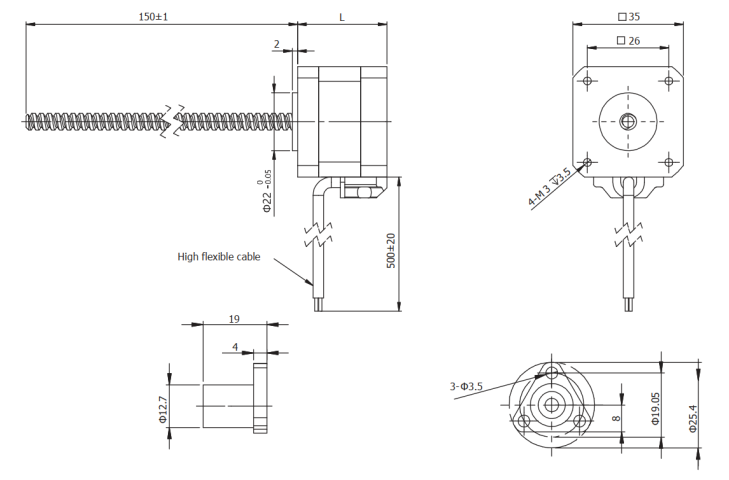

Technical Data Download Dimensions Combinations
Size35 mmNema14
Length (L)47 mmCurrent/Phase1.5 A
Rated Voltage2.9 VdcResistance/Phase1.9 Ohm
Inductance/Phase3.2 mHN° of Leads4
Rotor Inertia30 gcm2Weight230 g
Thrust ref25 NScrew Diameter6.35 mm
Screw Lead25.4 mmTravel per Step0.127 mm
Screw Length (Ls)100 mmWiringBipolar
Step Angle1.8 °Insulation ClassB
Protection classIP20 Operating Temperature-20°C +50°C
Temperature Risemax. 80 °CDielectric strength (for 1 sec.)500 VAC
