32BLW

Home   Products   >   Brushless DC motors   >   Brushless DC Flat motors   >   32BLW
32BLW18-9V

32BLW18-9V

Product Code: 32BLW18-9V.000

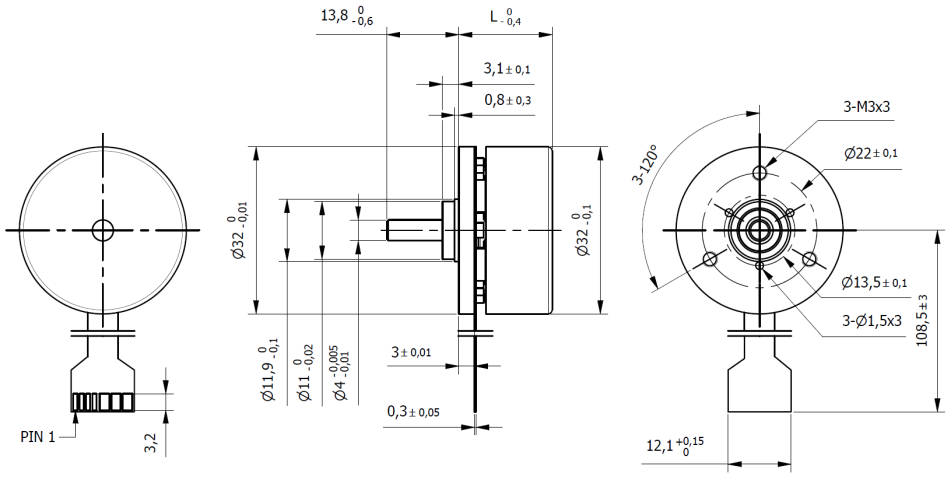

Technical Data Download Dimensions Combinations
Size32 mmLength (L)17.9 mm
Rated Voltage9 VdcRated Torque0.025 Nm
Rated Speed2100 rpmn° of Pole8
n° of Phase3 Max. Peak Torque0.075 Nm
Torque Constant0.023 Nm/ARated Current1.09 A
Max. Peak Current3.4 ANo-Load Current290 mA
Line to Line Resistance3 OhmLine to Line Inductance1.6 mH
Rotor Inertia35 gcm2Weight0.05 Kg
Hall Effect Angle120 °Shaft run out0.025 mm
Insulation ClassB Protection ClassIP40
Radial Play (450g load)0.02 mmAxial Play (450g load)0.06 mm
Max. Radial Force (10mm from flange)14 NMax. Axial Force4 N
Dielectric Strength (for 1min.)250 VACInsulation Resistance (min.500 VDC)100 Mohm
