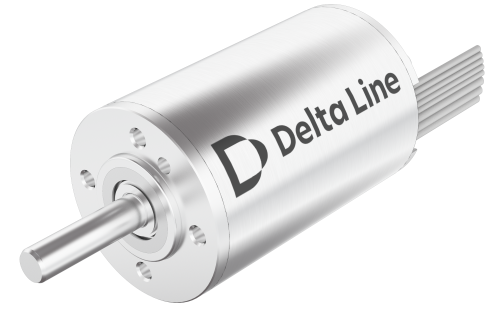

30EC64T-48V

30EC64T-48V

Series EC   |  Size 30 mm  |  Length (L) 64 mm  |  Rated Voltage 48 Vdc  |  Rated Torque 0.0929 Nm  |  Rated Speed 16000 rpm

Product Code: 30EC64T-48V-16003-H.001

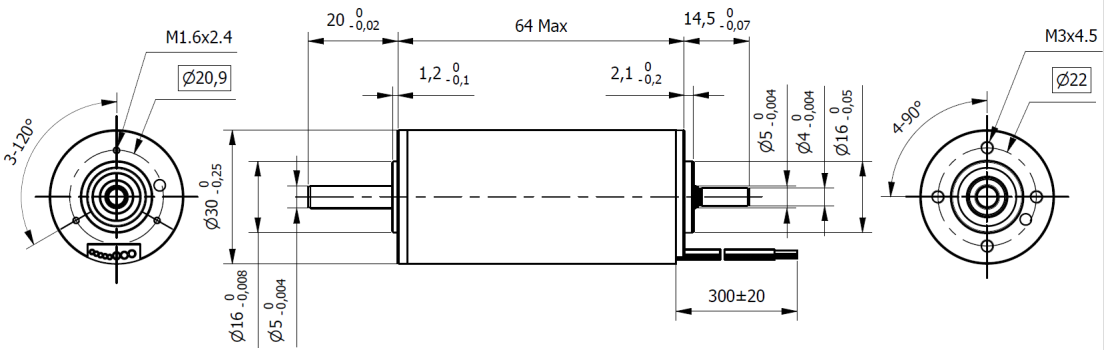

Technical Data Download Dimensions Combinations
SeriesEC Size30 mm
Length (L)64 mmRated Voltage48 Vdc
Rated Torque0.0929 NmRated Speed16000 rpm
n° of Pole4 n° of Phase3
Stall Torque3430 mNmTorque Constant27.6 mNm/A
Motor Regulation0.5 103/NmsRated Current3.68 A
Stall Current124 ANo-Load Current356 mA
No-Load Speed16500 rpmLine to Line Resistance0.386 Ohm
Line to Line Inductance0.065 mHRotor Inertia33.3 gcm2
Max. Efficiency90 %Mechanical Time Constant1.69 ms
Weight300 gOperating Temperature-20°C +100°C
Max. Winding Temperature155 °CMax. Speed25000 rpm
Radial PlayPreloaded Axial Play0 to 0.14 mm
Max. Radial Force (5mm from flange)25 NMax. Axial Force6 N
Press-Fit Max.73 N
