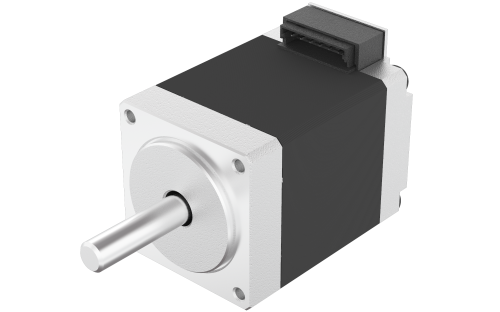

28STC51-1504A

28STC51-1504A

Product Code: 28STC51-1504A.000

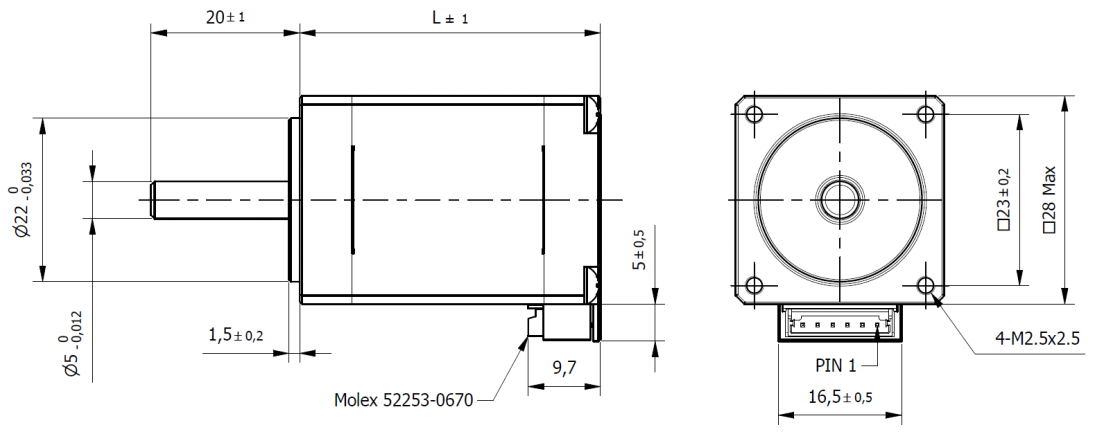

Technical Data Download Dimensions Combinations
SeriesSTC Size28 mm
Nema11 Length (L)51 mm
Current/Phase1.5 AHolding Torque0.18 Nm
Step Angle1.8 °Rated Voltage2.7 Vdc
Resistance/Phase1.9 OhmInductance/Phase1.9 mH
Rotor Inertia18 gcm2Detent Torque0.008 Nm
N° of Leads4 Weight0.20 Kg
Step Angle accuracy±5 %Insulation ClassB
Protection ClassIP30 Operating Temperature-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CRadial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (20mm from flange)28 N
Max. Axial Force7 NDielectric Strength (for 1min.)500 VAC
Insulation Resistance (min.500 VDC)100 Mohm
