28SH

Home   Products   >   Stepper motors   >   Hybrid Stepper motors   >   28SH

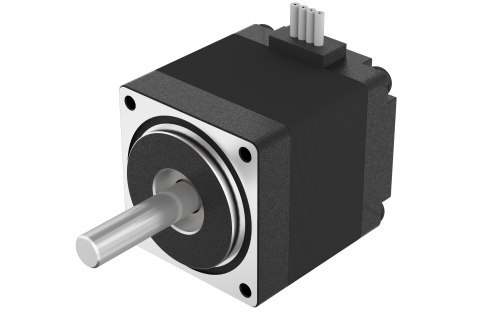

28SH51-0956A

28SH51-0956A

Product Code: 28SH51-0956A.000

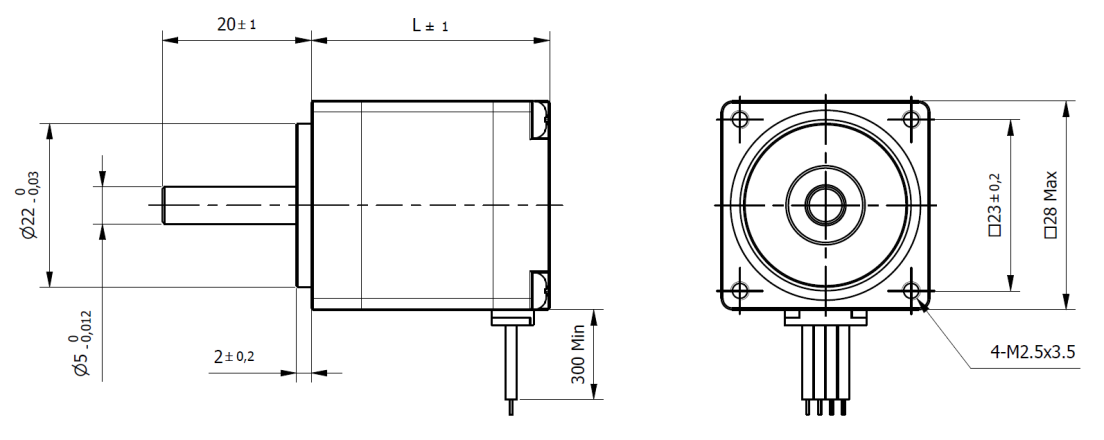

Technical Data Download Dimensions Combinations
SeriesSH Size28 mm
Nema11 Length (L)51 mm
Current/Phase0.95 AHolding Torque0.09 Nm
Step Angle1.8 °Rated Voltage4.4 Vdc
Resistance/Phase4.6 OhmInductance/Phase1.8 mH
Rotor Inertia18 gcm2Detent Torque0.008 Nm
N° of Leads6 Weight0.2 Kg
Step Angle accuracy±5 %Insulation ClassB
Protection ClassIP30 Operating Temperature-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)80 °CRadial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (20mm from flange)28 N
Max. Axial Force10 NDielectric strength (for 1 sec.)600 VAC
Insulation Resistance (min.500 VDC)100 Mohm
