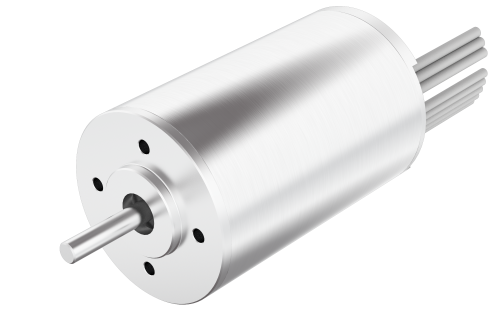

28SBL44

28SBL44

Series SBL   |  Size 28 mm  |  Length (L) 44 mm  |  Rated Voltage 24 Vdc  |  Rated Torque 0.018 Nm  |  Rated Speed 8000 rpm

Product Code: 28SBL44.000

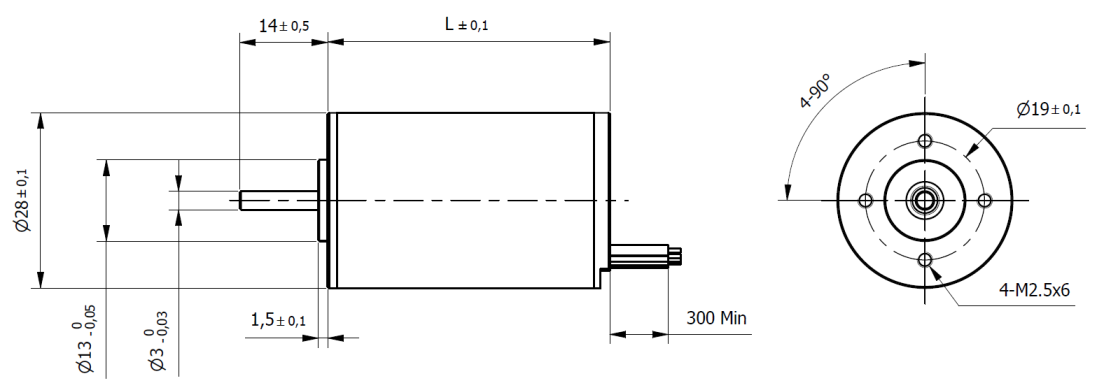

Technical Data Download Dimensions Combinations
SeriesSBL Size28 mm
Length (L)44 mmLength with Hall Sensors52 mm
Rated Voltage24 VdcRated Torque0.018 Nm
Rated Speed8000 rpmn° of Pole2
n° of Phase3 Max. Peak Torque0.055 Nm
Torque Constant23 mNm/ARated Current0.08 A
Max. Peak Current2.5 ANo-Load Current200 mA
Line to Line Resistance4.2 OhmLine to Line Inductance0.42 mH
Rotor Inertia8.8 gcm2Weight140 g
Hall Effect Angle120 °Shaft run out0.025 mm
Insulation ClassB Protection ClassIP40
Radial Play (450g load)0.02 mmAxial Play (1000g load)0.2 mm
Max. Radial Force (10mm from flange)5 NMax. Axial Force2 N
Dielectric strength (for 1 sec.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
