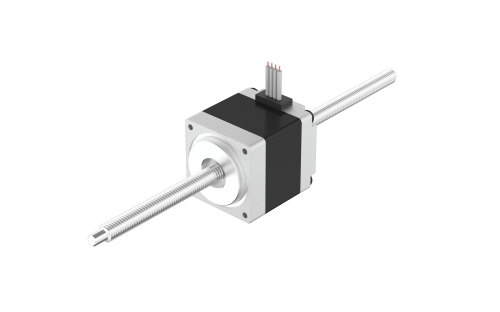

28N45-10-BD100

28N45-10-BD100

Size 28 mm  |  Nema 11   |  Length (L) 45 mm  |  Current/Phase 1 A  |  Thrust ref 85 N  |  Travel per Step 0.0254 mm

Product Code: 28N45-10-BD100

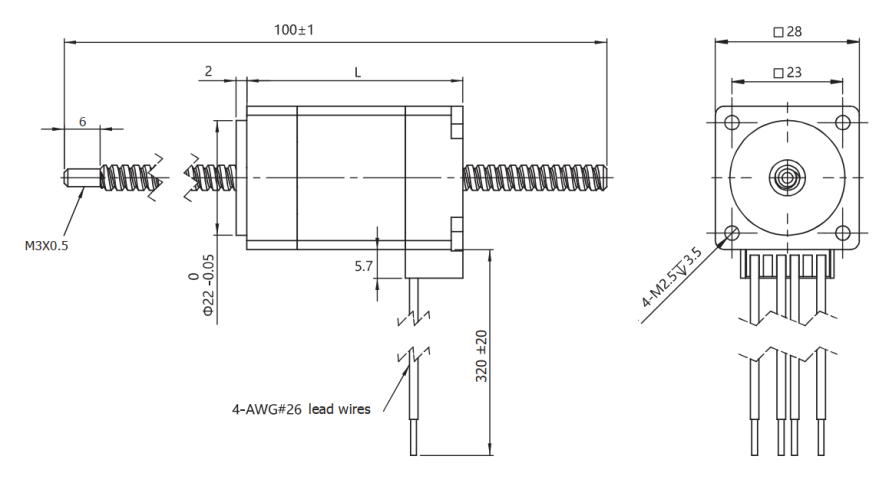

Technical Data Download Dimensions Combinations
Size28 mmNema11
Length (L)45 mmCurrent/Phase1 A
Rated Voltage3.7 VdcResistance/Phase3.7 Ohm
Inductance/Phase2.3 mHN° of Leads4
Rotor Inertia13 gcm2Weight180 g
Thrust ref85 NScrew Diameter4.76 mm
Screw Lead5.08 mmTravel per Step0.0254 mm
Screw Length (Ls)100 mmWiringBipolar
Step Angle1.8 °Insulation ClassB
Protection classIP20 Operating Temperature-20°C +50°C
Temperature Risemax. 80 °CDielectric strength (for 1 sec.)500 VAC
