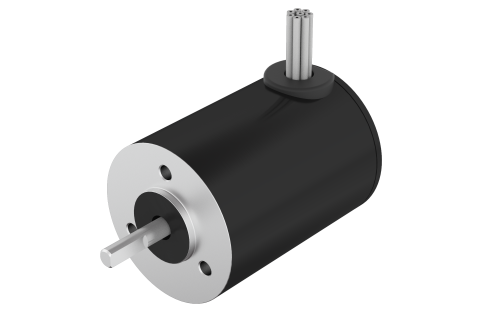

28BL77

28BL77

Series BL   |  Size 28 mm  |  Length (L) 77 mm  |  Rated Voltage 24 Vdc  |  Rated Torque 0.05 Nm  |  Rated Speed 3100 rpm

Product Code: 28BL77.000

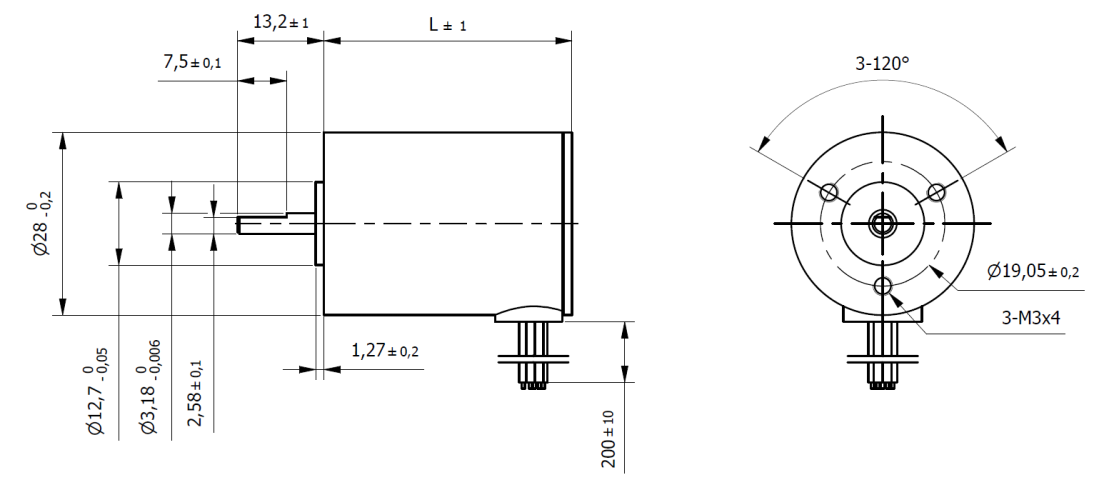

Technical Data Download Dimensions Combinations
SeriesBL Size28 mm
Length (L)77 mmWeight0.28 Kg
Rated Voltage24 VdcRated Torque0.05 Nm
Rated Speed3100 rpmn° of Pole4
n° of Phase3 Max. Peak Torque0.12 Nm
Torque Constant0.05 Nm/ARated Current1 A
Max. Peak Current3 ANo-Load Current150 mA
Line to Line Resistance4.67 OhmLine to Line Inductance2.2 mH
Rotor Inertia10.98 gcm2Hall Effect Angle120 °
Shaft run out0.025 mmInsulation ClassB
Protection ClassIP40 Radial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (10mm from flange)10 N
Max. Axial Force2 NDielectric Strength (for 1min.)360 VAC
Insulation Resistance (min.500 VDC)100 Mohm
