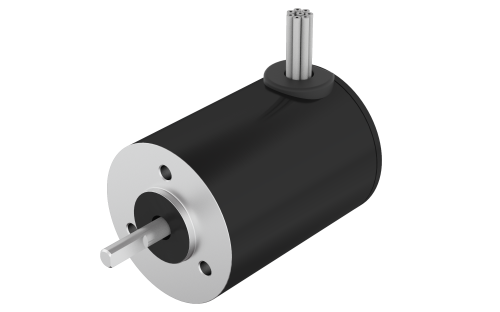

28BL38

28BL38

Product Code: 28BL38.000

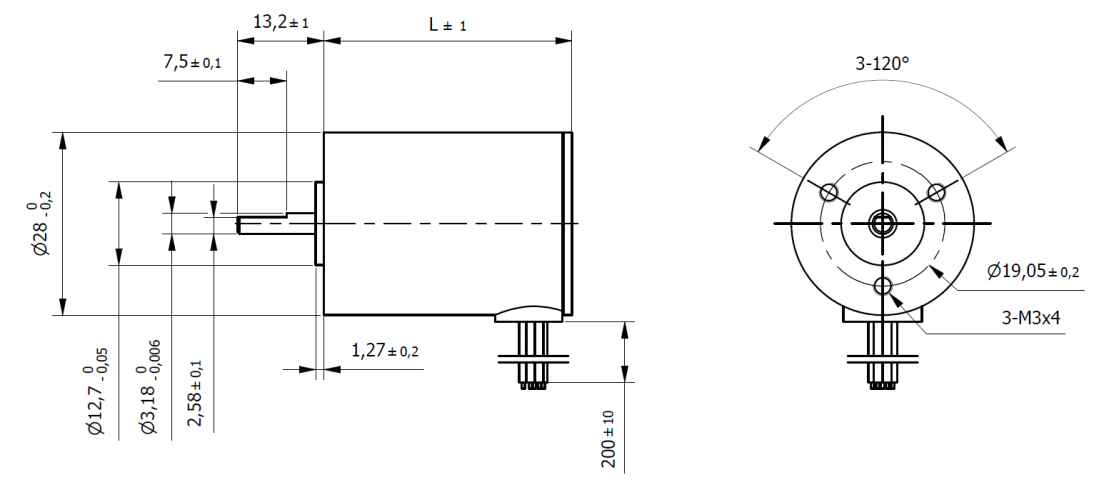

Technical Data Download Dimensions Combinations
SeriesBL Size28 mm
Length (L)38 mmWeight0.082 Kg
Rated Voltage24 VdcRated Torque0.016 Nm
Rated Speed3100 rpmn° of Pole4
n° of Phase3 Max. Peak Torque0.048 Nm
Torque Constant0.024 Nm/ARated Current0.67 A
Max. Peak Current2 ANo-Load Current200 mA
Line to Line Resistance20.5 OhmLine to Line Inductance7.4 mH
Rotor Inertia3.69 gcm2Hall Effect Angle120 °
Shaft run out0.025 mmInsulation ClassB
Protection ClassIP40 Radial Play (450g load)0.02 mm
Axial Play (450g load)0.08 mmMax. Radial Force (10mm from flange)10 N
Max. Axial Force2 NDielectric Strength (for 1min.)360 VAC
Insulation Resistance (min.500 VDC)100 Mohm
