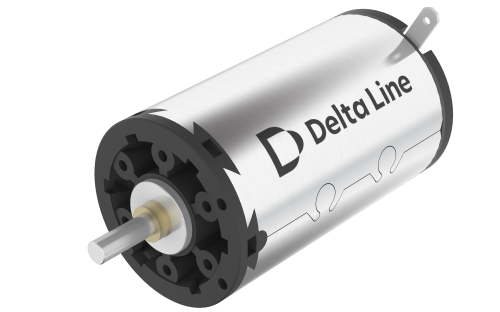

26DC44P-48V-G

Product Code: 26DC44P-48V-7809-G.001

Technical Data

Download

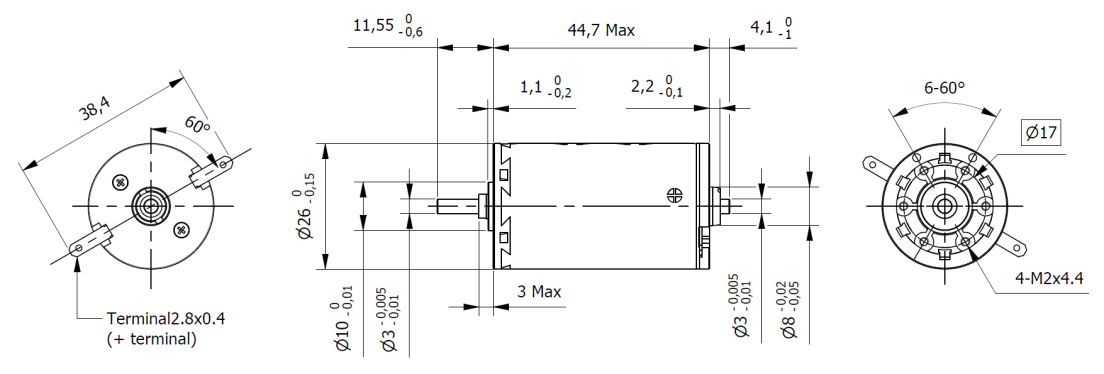

Dimensions

Combinations

Commutation	Graphite Brushes	Size	26 mm
Length (L)	44.7 mm	Weight	120 g
Rated Voltage	48 Vdc	Rated Torque	28.3 mNm
Rated Speed	7840 rpm	Stall Torque	277 mNm
Torque Constant	52.2 mNm/A	Motor Regulation	3.3 10³/Nms
Rated Current	0.567 A	Stall Current	5.31 A
No-Load Current	26 mA	No-Load Speed	8730 rpm
Line to Line Resistance	9.04 Ohm	Line to Line Inductance	1.16 mH
Rotor Inertia	15.2 gcm²	Max. Efficiency	87 %
Mechanical Time Constant	5.04 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	11000 rpm
Radial Play	0.012mm	Axial Play	0.1 / 0.2 mm
Max. Radial Force (5mm from flange)	5.5 N	Max. Axial Force	2 N
Press-Fit Max.	80 N
