22EC48T-48V

22EC48T-48V

Series EC   |  Size 22 mm  |  Length (L) 48.6 mm  |  Rated Voltage 48 Vdc  |  Rated Torque 0.0426 Nm  |  Rated Speed 14900 rpm

Product Code: 22EC48T-48V-14902-H.001

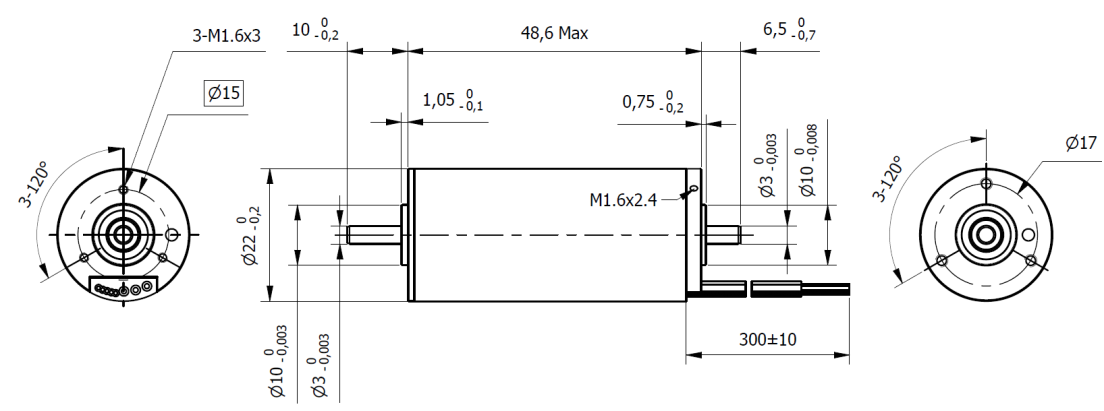

Technical Data Download Dimensions Combinations
SeriesEC Size22 mm
Length (L)48.6 mmRated Voltage48 Vdc
Rated Torque0.0426 NmRated Speed14900 rpm
n° of Pole4 n° of Phase3
Stall Torque586 mNmTorque Constant28.1 mNm/A
Motor Regulation2.9 103/NmsRated Current1.58 A
Stall Current20.9 ANo-Load Current82 mA
No-Load Speed16300 rpmLine to Line Resistance2.3 Ohm
Line to Line Inductance0.201 mHRotor Inertia5.54 gcm2
Max. Efficiency88 %Mechanical Time Constant1.62 ms
Weight125 gOperating Temperature-40°C +100°C
Max. Winding Temperature155 °CMax. Speed25000 rpm
Radial Playpreloaded Axial Play0 to 0.14 mm
Max. Radial Force (5mm from flange)16 NMax. Axial Force4 N
Press-Fit Max.53 N
