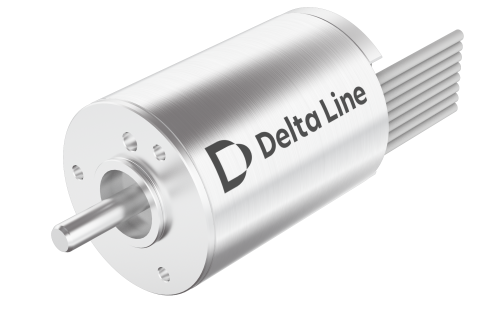

22EC48P-24V

Series EC | Size 22 mm | Length (L) 48.5 mm | Rated Voltage 24 Vdc | Rated Torque 0.0227 Nm | Rated Speed 10400 rpm

Product Code: 22EC48P-24V-10403-H.001

Technical Data

Download

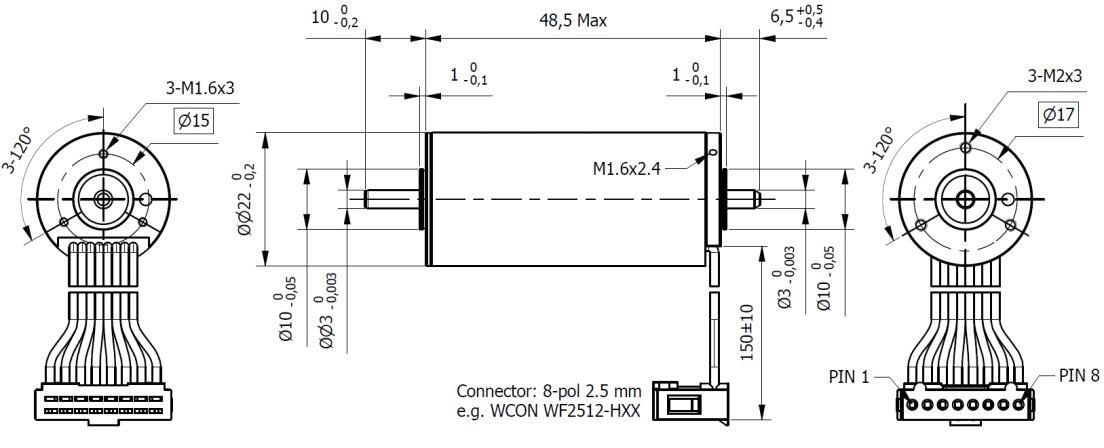

Dimensions

Combinations

Series	EC	Size	22 mm
Length (L)	48.5 mm	Rated Voltage	24 Vdc
Rated Torque	0.0227 Nm	Rated Speed	10400 rpm
n° of Pole	2	n° of Phase	3
Stall Torque	121 mNm	Torque Constant	17.4 mNm/A
Motor Regulation	11.4 10³/Nms	Rated Current	1.4 A
Stall Current	6.97 A	No-Load Current	121 mA
No-Load Speed	12900 rpm	Line to Line Resistance	3.46 Ohm
Line to Line Inductance	0.182 mH	Rotor Inertia	4.45 gcm²
Max. Efficiency	76 %	Mechanical Time Constant	5.06 ms
Weight	110 g	Operating Temperature	-40°C +100°C
Max. Winding Temperature	155 °C	Max. Speed	18000 rpm
Radial Play	Preloaded	Axial Play	0 to 0.14 mm
Max. Radial Force (5mm from flange)	16 N	Max. Axial Force	4 N
Press-Fit Max.	60 N
