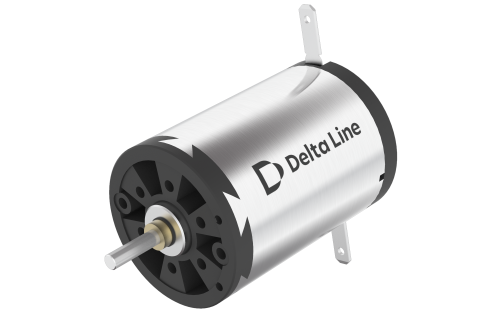

22DC32P-6V-G

Product Code: 22DC32P-6V-4901-G.001

Technical Data

Download

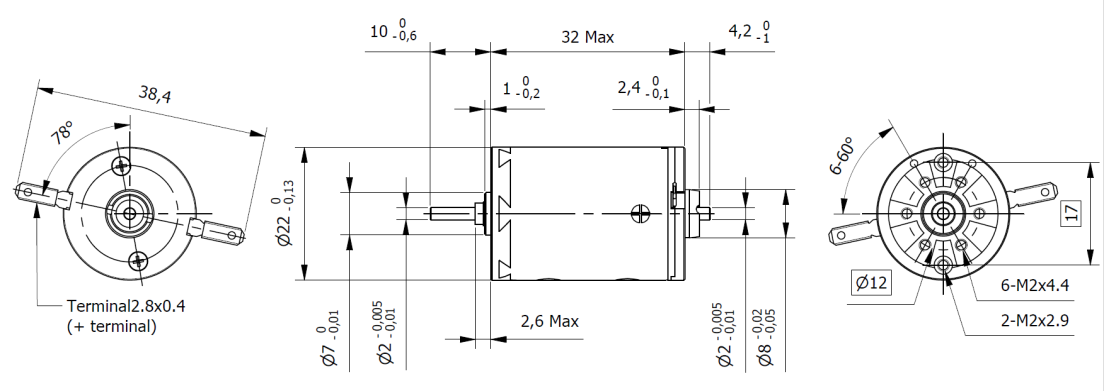

Dimensions

Combinations

Commutation	Graphite Brushes	Size	22 mm
Length (L)	32 mm	Weight	54 g
Rated Voltage	6 Vdc	Rated Torque	11.5 mNm
Rated Speed	4950 rpm	Stall Torque	42.4 mNm
Torque Constant	7.88 mNm/A	Motor Regulation	17.9 10³/Nms
Rated Current	1.52 A	Stall Current	5.39 A
No-Load Current	59 mA	No-Load Speed	7030 rpm
Line to Line Resistance	1.11 Ohm	Line to Line Inductance	0.069 mH
Rotor Inertia	5.07 gcm²	Max. Efficiency	76 %
Mechanical Time Constant	9.09 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	125 °C	Max. Speed	9000 rpm
Radial Play	0.012mm	Axial Play	0.05 / 0.15 mm
Max. Radial Force (5mm from flange)	2.8 N	Max. Axial Force	1.7 N
Press-Fit Max.	80 N
