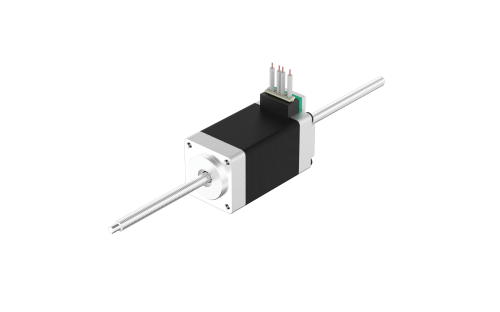

20N42-05-AB100

20N42-05-AB100

Product Code: 20N42-05-AB100

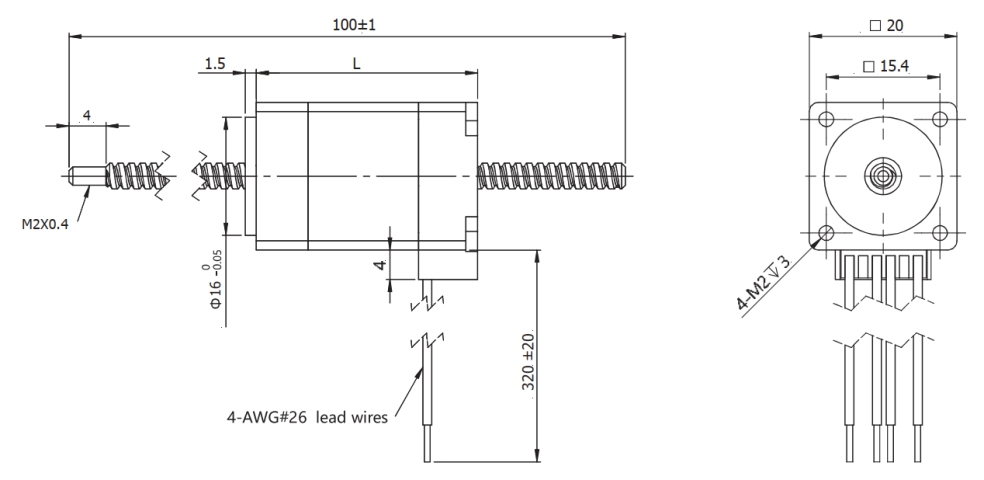

Technical Data Download Dimensions Combinations
Size20 mmNema08
Length (L)42 mmCurrent/Phase0.5 A
Rated Voltage6.3 VdcResistance/Phase12.5 Ohm
Inductance/Phase11 mHN° of Leads4
Rotor Inertia3 gcm2Weight80 g
Thrust ref84 NScrew Diameter3.5 mm
Screw Lead1 mmTravel per Step0.005 mm
Screw Length (Ls)100 mmWiringBipolar
Step Angle1.8 °Insulation ClassB
Protection classIP20 Operating Temperature-20°C +50°C
Temperature Risemax. 80 °CDielectric strength (for 1 sec.)500 VAC
