20E

Home   Products   >   Stepper Linear Actuators   >   External hybrid stepper linear actuators   >   20E
20E30-05-AD100

20E30-05-AD100

Product Code: 20E30-05-AD100

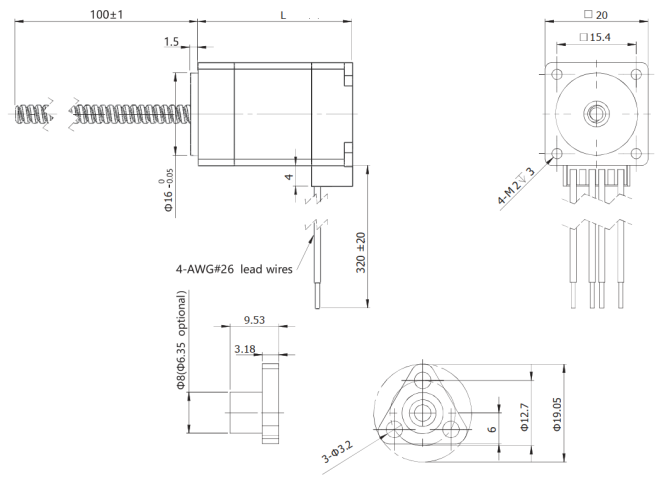

Technical Data Download Dimensions Combinations
Size20 mmNema08
Length (L)30 mmCurrent/Phase0.5 A
Rated Voltage2.5 VdcResistance/Phase5.1 Ohm
Inductance/Phase1.5 mHN° of Leads4
Rotor Inertia2 gcm2Weight50 g
Thrust ref12 NScrew Diameter3.5 mm
Screw Lead4 mmTravel per Step0.02 mm
Screw Length (Ls)100 mmWiringBipolar
Step Angle1.8 °Insulation ClassB
Protection classIP20 Operating Temperature-20°C +50°C
Temperature Risemax. 80 °CDielectric strength (for 1 sec.)500 VAC
