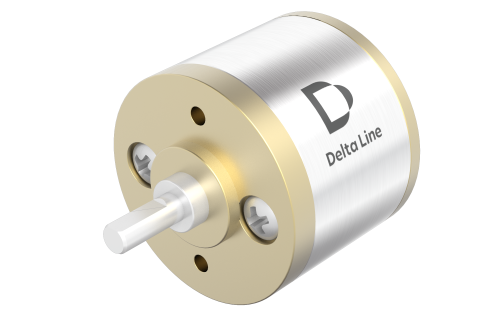

16GSS-3-31

Product Code: 16GSS-3-31

Technical Data

Download

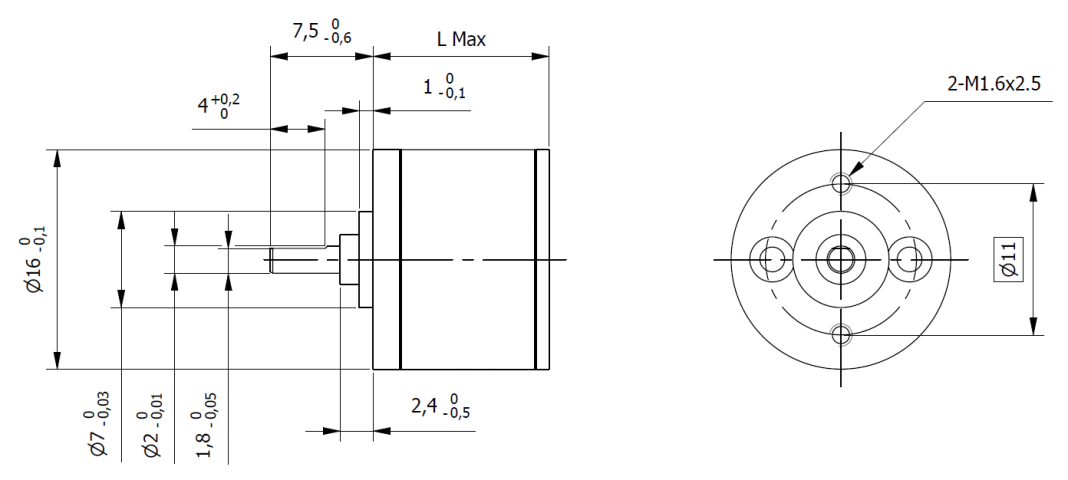

Dimensions

Size	16 mm	Length (L)	12.8 mm
Reduction Ratio	31	Stages	3
Nominal Output Torque	0.025 Nm	Recommended Input Speed	8000 rpm
Max. Output Torque	0.1 Nm	Efficiency	73 %
Mass Inertia	0.003 gcm²	Average Backlash No-load	1 °
Max. Axial Force	2 N	Max. Radial Force (6.5mm from flange)	2 N
Weight	9.8 g	Press-Fit Max.	30 N
Operating Temperature	-15°C +100°C	Bearing output	Sleeve Bearings
