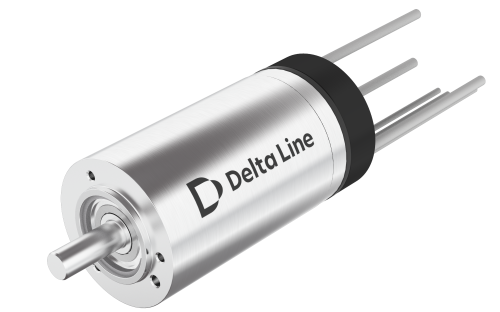

16EC40NS-36V

16EC40NS-36V

Series EC Speed   |  Size 16 mm  |  Length (L) 40 mm  |  Rated Voltage 36 Vdc  |  Rated Torque 0.0074 Nm  |  Rated Speed 52200 rpm

Product Code: 16EC40NS-36V-52201-H.001

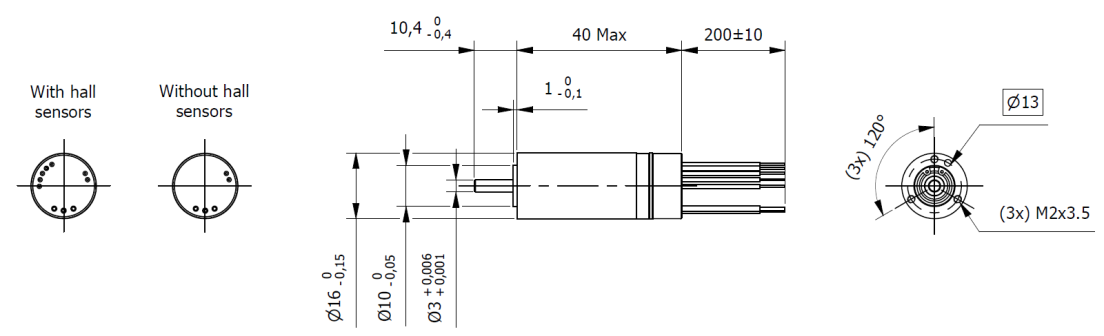

Technical Data Download Dimensions Combinations
SeriesEC Speed Size16 mm
Length (L)40 mmRated Voltage36 Vdc
Rated Torque0.0074 NmRated Speed52200 rpm
n° of Pole2 n° of Phase3
Stall Torque113 mNmTorque Constant6.04 mNm/A
Motor Regulation52.6 103/NmsRated Current1.35 A
Stall Current18.8 ANo-Load Current143 mA
No-Load Speed56400 rpmLine to Line Resistance1.92 Ohm
Line to Line Inductance0.113 mHRotor Inertia0.812 gcm2
Max. Efficiency83.7 %Mechanical Time Constant4.26 ms
Weight50 gOperating Temperature-20°C +100°C
Max. Winding Temperature155 °CMax. Speed70000 rpm
Radial PlayPreloaded Axial Play0 to 0.29 mm
Max. Radial Force (5mm from flange)10 NMax. Axial Force1.5 N
Press-Fit Max.60 N
