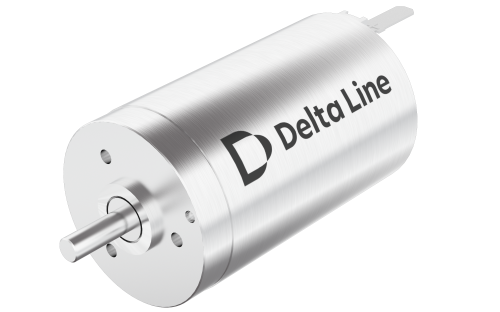

16DC40N-24V-G

16DC40N-24V-G

Commutation Graphite Brushes   |  Size 16 mm  |  Length (L) 40.4 mm  |  Rated Voltage 24 Vdc  |  Rated Torque 11.3 mNm  |  Rated Speed 10600 rpm

Product Code: 16DC40N-24V-10606-G.001

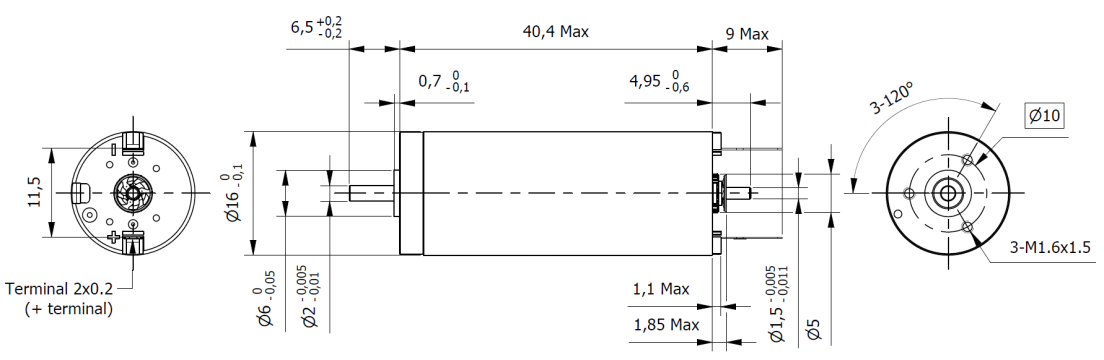

Technical Data Download Dimensions Combinations
CommutationGraphite Brushes Size16 mm
Length (L)40.4 mmWeight42 g
Rated Voltage24 VdcRated Torque11.3 mNm
Rated Speed10600 rpmStall Torque68.5 mNm
Torque Constant17.8 mNm/AMotor Regulation19.7 103/Nms
Rated Current0.651 AStall Current3.85 A
No-Load Current18 mANo-Load Speed12800 rpm
Line to Line Resistance6.23 OhmLine to Line Inductance0.411 mH
Rotor Inertia2.28 gcm2Max. Efficiency86 %
Mechanical Time Constant4.48 msAmbient Temperature Sleeve bearings-30 / +100 °C
Max. Winding Temperature125 °CMax. Speed15000 rpm
Radial Play0.015mm Axial Play0 / 0.2 mm
Max. Radial Force (5mm from flange)2 NMax. Axial Force0.1 N
Press-Fit Max.60 N
