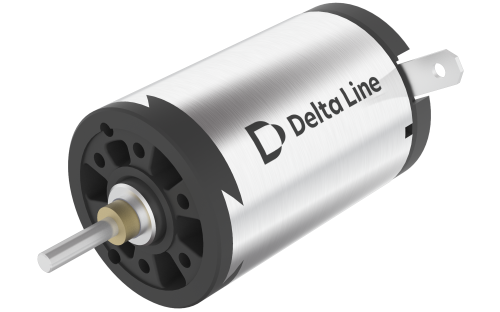

16DC25P-6V-PM

Product Code: 16DC25P-6V-4804-PM.001

Technical Data

Download

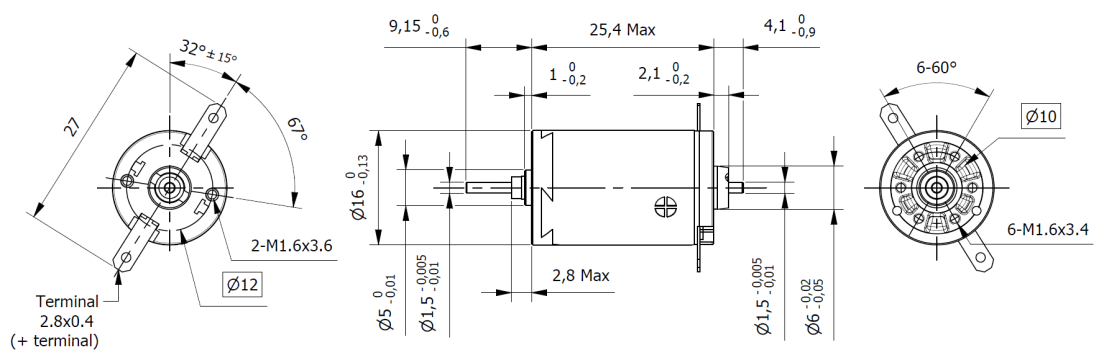

Dimensions

Combinations

Commutation	Precious Metal Brushes	Size	16 mm
Length (L)	25.4 mm	Weight	23 g
Rated Voltage	6 Vdc	Rated Torque	4.06 mNm
Rated Speed	4830 rpm	Stall Torque	10.5 mNm
Torque Constant	7.19 mNm/A	Motor Regulation	79.3 10³/Nms
Rated Current	0.577 A	Stall Current	1.46 A
No-Load Current	15 mA	No-Load Speed	7890 rpm
Line to Line Resistance	4.1 Ohm	Line to Line Inductance	0.14 mH
Rotor Inertia	1.12 gcm²	Max. Efficiency	81 %
Mechanical Time Constant	8.87 ms	Ambient Temperature Sleeve bearings	-30 / +65 °C
Max. Winding Temperature	85 °C	Max. Speed	11000 rpm
Radial Play	0.012mm	Axial Play	0.05 / 0.15 mm
Max. Radial Force (5mm from flange)	1.4 N	Max. Axial Force	0.8 N
Press-Fit Max.	35 N
