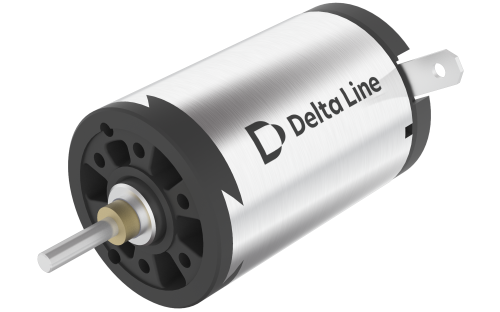

16DC25P-6V-G

Product Code: 16DC25P-6V-6702-G.001

Technical Data

Download

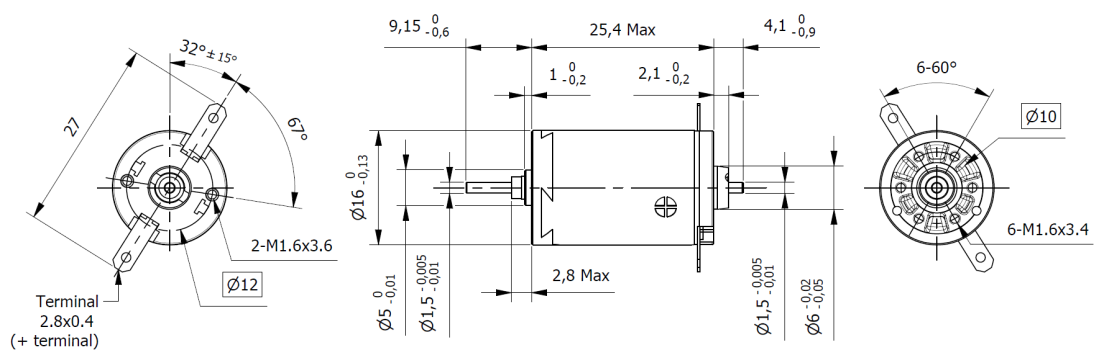

Dimensions

Combinations

Commutation	Graphite Brushes	Size	16 mm
Length (L)	25.4 mm	Weight	23 g
Rated Voltage	6 Vdc	Rated Torque	3.71 mNm
Rated Speed	6770 rpm	Stall Torque	12.1 mNm
Torque Constant	5.62 mNm/A	Motor Regulation	88.3 10³/Nms
Rated Current	0.720 A	Stall Current	2.15 A
No-Load Current	67 mA	No-Load Speed	9870 rpm
Line to Line Resistance	2.79 Ohm	Line to Line Inductance	0.086 mH
Rotor Inertia	1 gcm²	Max. Efficiency	68 %
Mechanical Time Constant	8.85 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	125 °C	Max. Speed	11000 rpm
Radial Play	0.012mm	Axial Play	0.05 / 0.15 mm
Max. Radial Force (5mm from flange)	1.4 N	Max. Axial Force	0.8 N
Press-Fit Max.	35 N
