Home Products > Brushed DC motors > Brushed DC Coreless motors > 16DC -P

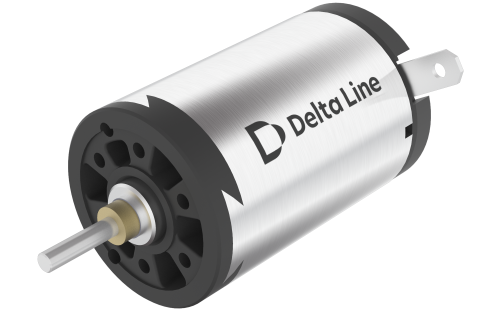

16DC25P-12V-PM

Product Code: 16DC25P-12V-4319-PM.001

Technical Data

Download

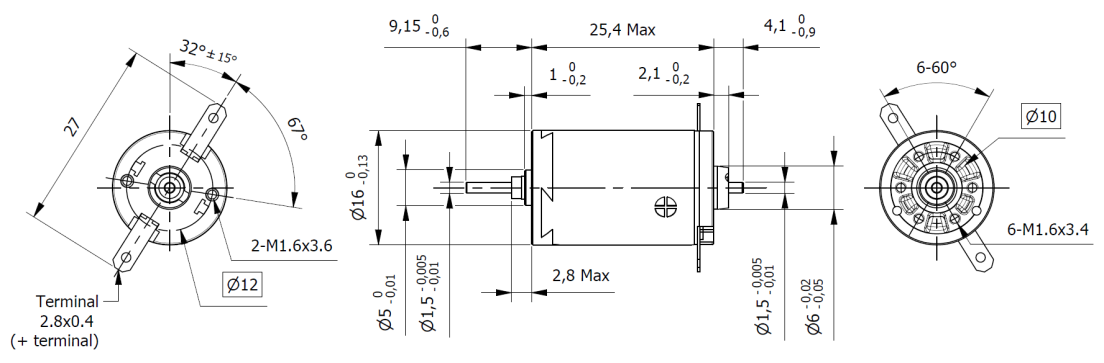

Dimensions

Combinations

Commutation	Precious Metal Brushes	Size	16 mm
Length (L)	25.4 mm	Weight	23 g
Rated Voltage	12 Vdc	Rated Torque	3.92 mNm
Rated Speed	4390 rpm	Stall Torque	9.44 mNm
Torque Constant	15 mNm/A	Motor Regulation	84.9 10³/Nms
Rated Current	0.267 A	Stall Current	0.629 A
No-Load Current	7 mA	No-Load Speed	7560 rpm
Line to Line Resistance	19.1 Ohm	Line to Line Inductance	0.61 mH
Rotor Inertia	1.05 gcm²	Max. Efficiency	80 %
Mechanical Time Constant	8.92 ms	Ambient Temperature Sleeve bearings	-30 / +65 °C
Max. Winding Temperature	85 °C	Max. Speed	11000 rpm
Radial Play	0.012mm	Axial Play	0.05 / 0.15 mm
Max. Radial Force (5mm from flange)	1.4 N	Max. Axial Force	0.8 N
Press-Fit Max.	35 N
