Home Products > Servomotors > Medium voltage servomotors > 130SV-220VAC

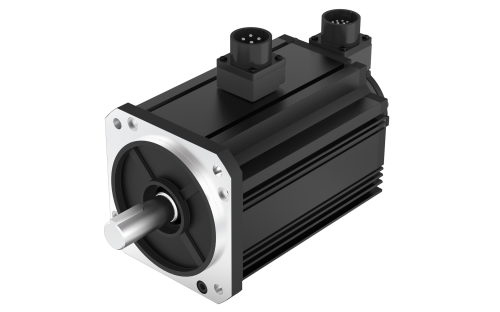

130SV300-220V-30EA2

Product Code: 130SV300-220V-30EA2

Technical Data

Download

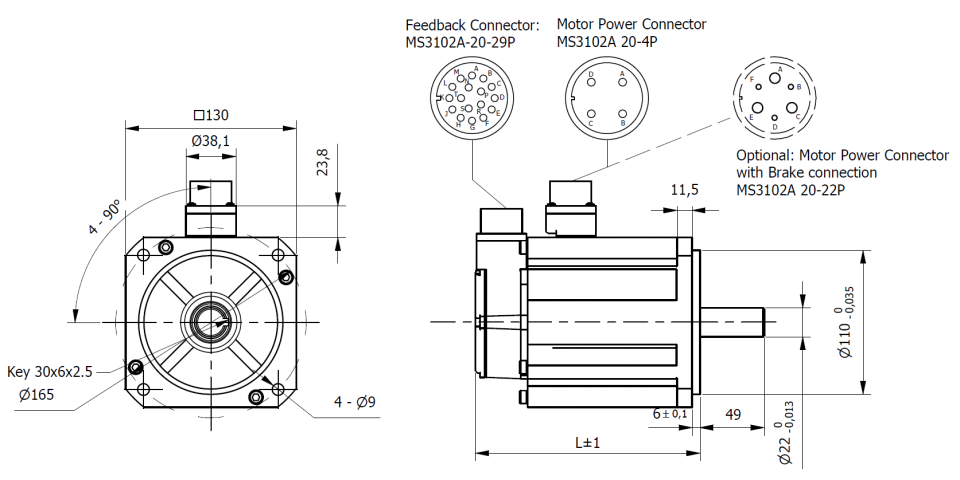

Dimensions

Combinations

Size	130 mm	Length (L)	206 mm
Nominal Voltage	220 VAC	Rated Torque	14.3 Nm
Rated Speed	2000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	3000 Watt
No-Load Speed	3200±10% rpm	Max. Peak Torque	42.9 Nm
Torque Constant	1.12 Nm/A	Rated Current	14 A
Max. Peak Current	42 A	No-Load Current	<1.4 A
Back EMF constant	68 V/kRPM	Line to Line Resistance	0.5±10% Ohm
Line to Line Inductance	3±20% mH	Rotor Inertia	20.2 Kgcm²
Brake	24VDC - 16Nm	Weight	14.2 Kg
Protection Class	IP65	Insulation Class	F 155°C
Radial Play	0.02mm (max.4N)	Axial Play	0.12mm (max.4N) mm
Max. Radial Force (30mm from flange)	490 N	Max. Axial Force	196 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Encoder Type - Standard	Optical incremental 2500CPR	Encoder Type - Optional	on demand
