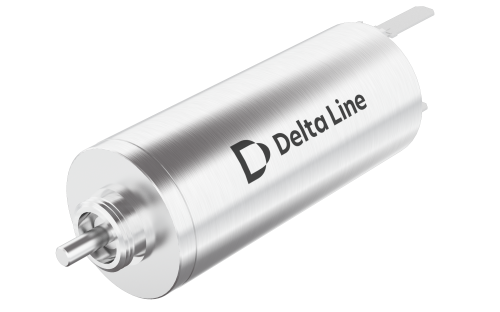

12DC28N-12V-PM

Product Code: 12DC28N-12V-5514-PM.001

Technical Data

Download

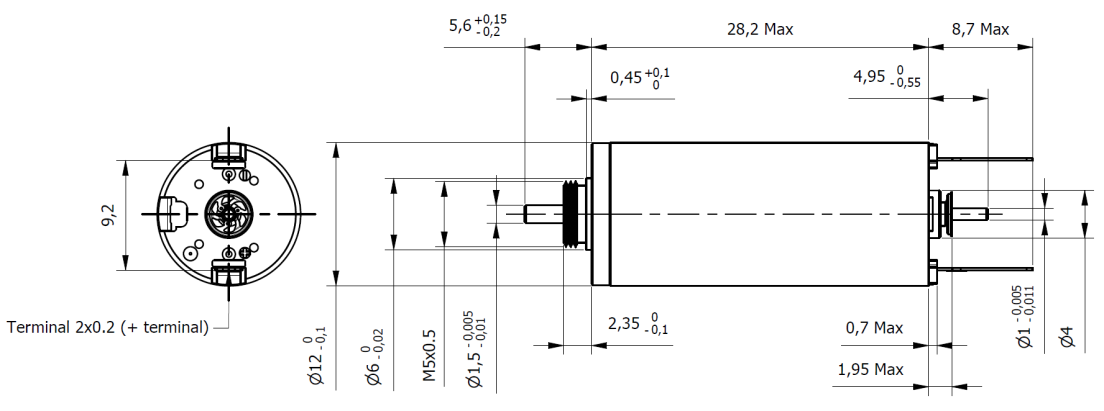

Dimensions

Combinations

Commutation	Precious Metal Brushes	Size	12 mm
Length (L)	28.2 mm	Weight	16 g
Rated Voltage	12 Vdc	Rated Torque	3.89 mNm
Rated Speed	5560 rpm	Stall Torque	10.6 mNm
Torque Constant	12.9 mNm/A	Motor Regulation	87.7 10³/Nms
Rated Current	0.309 A	Stall Current	0.824 A
No-Load Current	8 mA	No-Load Speed	8810 rpm
Line to Line Resistance	14.6 Ohm	Line to Line Inductance	0.502 mH
Rotor Inertia	0.498 gcm²	Max. Efficiency	82 %
Mechanical Time Constant	4.38 ms	Ambient Temperature Sleeve bearings	-30 / +85 °C
Max. Winding Temperature	100 °C	Max. Speed	12000 rpm
Radial Play	0.015mm	Axial Play	0 / 0.15 mm
Max. Radial Force (5mm from flange)	0.8 N	Max. Axial Force	0.1 N
Press-Fit Max.	30 N
