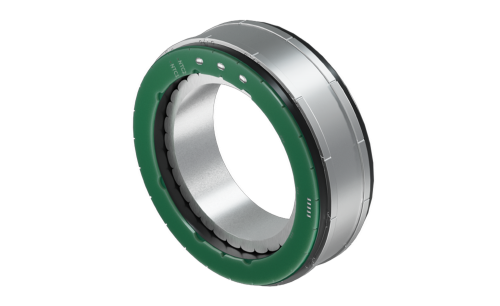

115BLF25-48V

Stator OD 115 mm | Rotor ID 74 mm | Rated Voltage 48 Vdc | Rated Torque 3.9 Nm | Rated Speed 1400 rpm

Product Code: 115BLF25-48V.000

Technical Data

Download

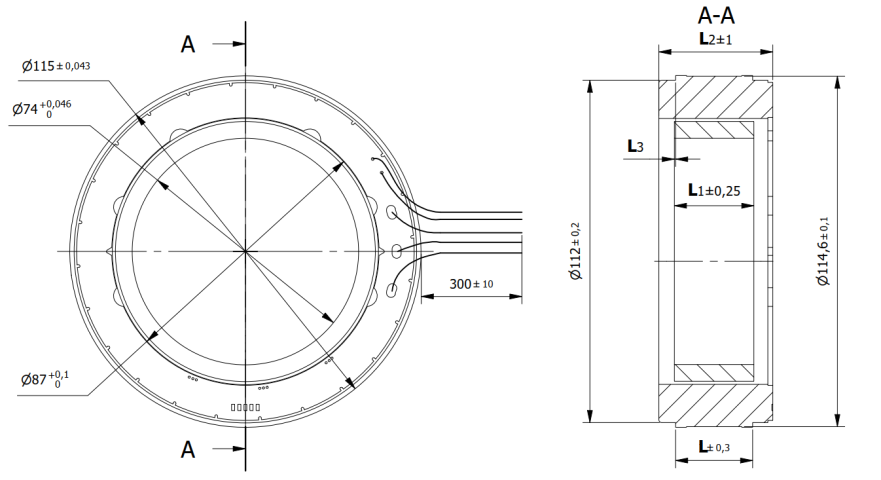

Dimensions

Combinations

Stator OD	115 mm	Rotor ID	74 mm
Rated Voltage	48 Vdc	Rated Torque	3.9 Nm
Max. Peak Torque	11.7 Nm	Rated Speed	1400 rpm
Max. Speed	1900 rpm	n° of Pole	20
n° of Phase	3	Torque Constant	0.293 Nm/A
Rated Current	14.1 A	Max. Peak Current	42.3 A
No-Load Current	1400 mA	Line to Line Resistance	0.2 Ohm
Line to Line Inductance	0.5 mH	Rotor Inertia	4120 gcm²
Back EMF	17.7 Vrms/Krpm	Stator height (L)	25 mm
Rotor height (L1)	26 mm	Length (L2)	37.3 mm
Measure (L3)	0.4 mm	Weight	1.1 Kg
Hall Effect Angle	120 °	Insulation Class	B
Dielectric strength (for 1 sec.)	1000 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating Temperature	-20°C +50°C	Humidity	max. 85% not condensing
