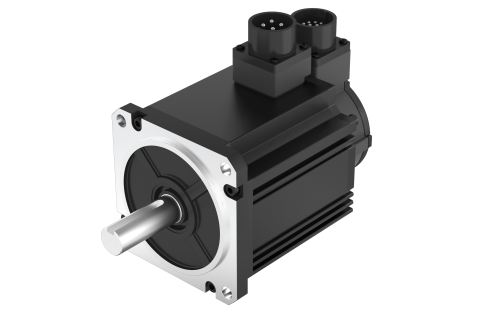

110SV150-220V-30EA1

110SV150-220V-30EA1

Size 110 mm  |  Length (L) 151.5 mm  |  Nominal Voltage 220 VAC   |  Rated Torque 4.77 Nm  |  Rated Speed 3000 rpm

Product Code: 110SV150-220V-30EA1

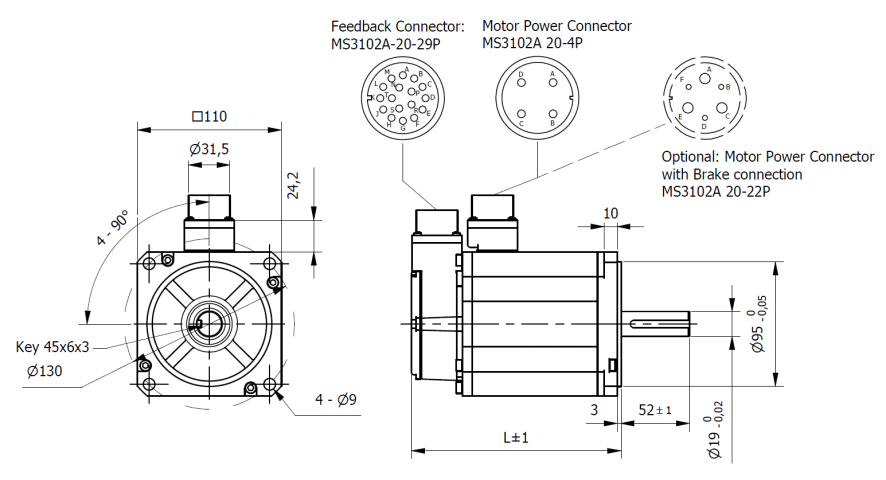

Technical Data Download Dimensions Combinations
Size110 mmLength (L)151.5 mm
Nominal Voltage220 VAC Rated Torque4.77 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power1500 Watt
No-Load Speed5000±10% rpmMax. Peak Torque14.3 Nm
Torque Constant0.63 Nm/ARated Current7.6 A
Max. Peak Current22.8 ANo-Load Current0.8 A
Back EMF constant38.1 V/kRPMLine to Line Resistance0.36±10% Ohm
Line to Line Inductance5.6±20% mHRotor Inertia3.1 Kgcm2
Weight5 KgProtection ClassIP65
Insulation ClassF 155°C Radial Play0.02mm (max.4N)
Axial Play0.08mm (max.4N) mmMax. Radial Force (20mm from flange)630 N
Max. Axial Force315 NDielectric strength (for 1 sec.)600 VAC
Insulation Resistance (min.500 VDC)100 MohmEncoder Type - StandardOptical incremental 2500CPR
Encoder Type - Optionalon demand
