Series
GPS
Size
8 mm
Length (L)
5.5 mm
Stages
1
Reduction Ratio
4:1
Nominal Output Torque
0.01 Nm
Max. Input Speed
20000 rpm
Recommended Input Speed
12000 rpm
Max. Output Torque
0.015 Nm
Efficiency
90 %
Average Backlash No-load
1.8 °
Max. Axial load
5 N
Max. Radial Force (5mm from flange)
5 N
Weight
3 g
Operating Temperature
-15 / +80°C
Bearing output
Ball Bearings
Technical Files
Datasheet
3D STP file
Home
Products
>
Gearboxes
>
Planetary gearboxes
>

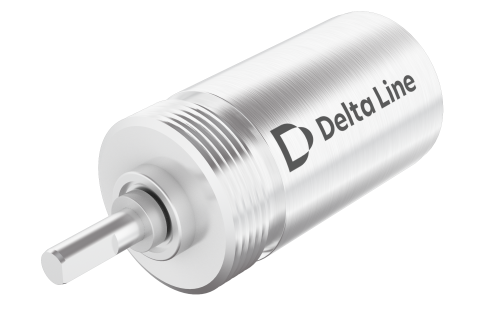

08GPS
08GPS-1N-4
Product Code: 08GPS-1N-4.001
Technical Data
Download

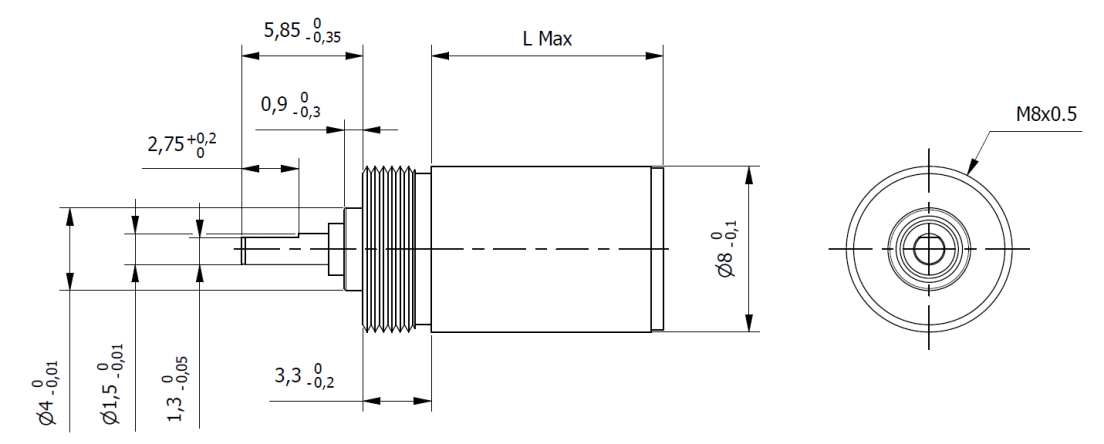

Dimensions
Series
GPS
Size
8 mm
Length (L)
5.5 mm
Stages
1
Reduction Ratio
4:1
Nominal Output Torque
0.01 Nm
Max. Input Speed
20000 rpm
Recommended Input Speed
12000 rpm
Max. Output Torque
0.015 Nm
Efficiency
90 %
Average Backlash No-load
1.8 °
Max. Axial load
5 N
Max. Radial Force (5mm from flange)
5 N
Weight
3 g
Operating Temperature
-15 / +80°C
Bearing output
Ball Bearings
